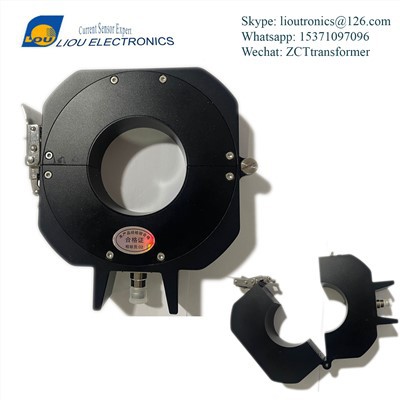

Phua hom ntawv tshaj tawm tam sim no hloov pauv LE-CTK302503 RCT



Siab Precision cais hom tseem ceeb tam sim no hloov pauv RCT / ZCT



S / n: lo-ctk302503



Cov Khoom Taw Qhia:



Ib hom kev sib cais ntawm cov khoom siv hluav taws xob tam sim no tsis muaj kev cuam tshuam nrog cov khoom siv hluav taws xob, uas muaj peev xwm siv cov khoom siv phom sij transformer tuaj yeem yog clamped nyob ib puag ncig uas twb muaj hluav taws xob ua kom muaj kev nyab xeeb rau cov khoom siv hluav taws xob yooj yim los txhawb kev nyab xeeb thiab pab txhawb kev txhaum kev nyab xeeb.



Nta:



• Yooj yim thiab yig installation, tshwj xeeb tshaj yog rau retrofit
• Cov Tswv Yim Xauv Khoom: sib cais ntawm thawj Cable tsis tas yuav tsum tau nyob rau ntau qhov sib txawv
• Tsis muaj kev cuam tshuam ntawm kev ua haujlwm



Daim Ntawv Thov:



• Lub Hwj Chim Fais Fab Tshuab
• Lub cev muaj zog tiv thaiv
• Kev tiv thaiv hluav taws
• NTSE HWJ HUAM
• Electromagnetic Relay





Kev txhais lus hluav taws xob tshwj xeeb:



Yam	Lub cim	Spec	Yam	Lub cim	Spec
Hov ntau	f	50 {{-60 hz	Rwb thaiv tsev ntawm kab	V	1000
Rated Pri tam sim no	In	1A	Rwb Cevhij Kuj	－	500mω / 500v / min
Rated sec tam sim no	IO	0.5ma	Hi-Lot Test	－	3000VAC(r . m} . s) (2min / 1min)
Nyob Ruaj Ntse Desistor	Ω	100
Txoj kev	f	<3%	Kev phais qho so	Ta	{{0 {}}℃~ +45 degree
Kev ua yog	-	Hoob 1	Chaw ntim khoom Qho so	Ts	{{0 {}}℃~ +75 degree
Nruam Tam Sim No	A	2	Thib ob reactance	Ω	100±3



Thawj thiab theem nrab polarity tsim:



Thawj qhov qauv thiab theem nrab: Dhau los ntawm nruab nrab ntawm Coil yog thawj lub rooj sib txuas thiab cov chaw ua haujlwm txuas rau theem nrab

Theem Tsim: P 1- s1 hauv theem, p {} s2 hauv theem

Daim Duab Schematic:



Qhov loj me:
